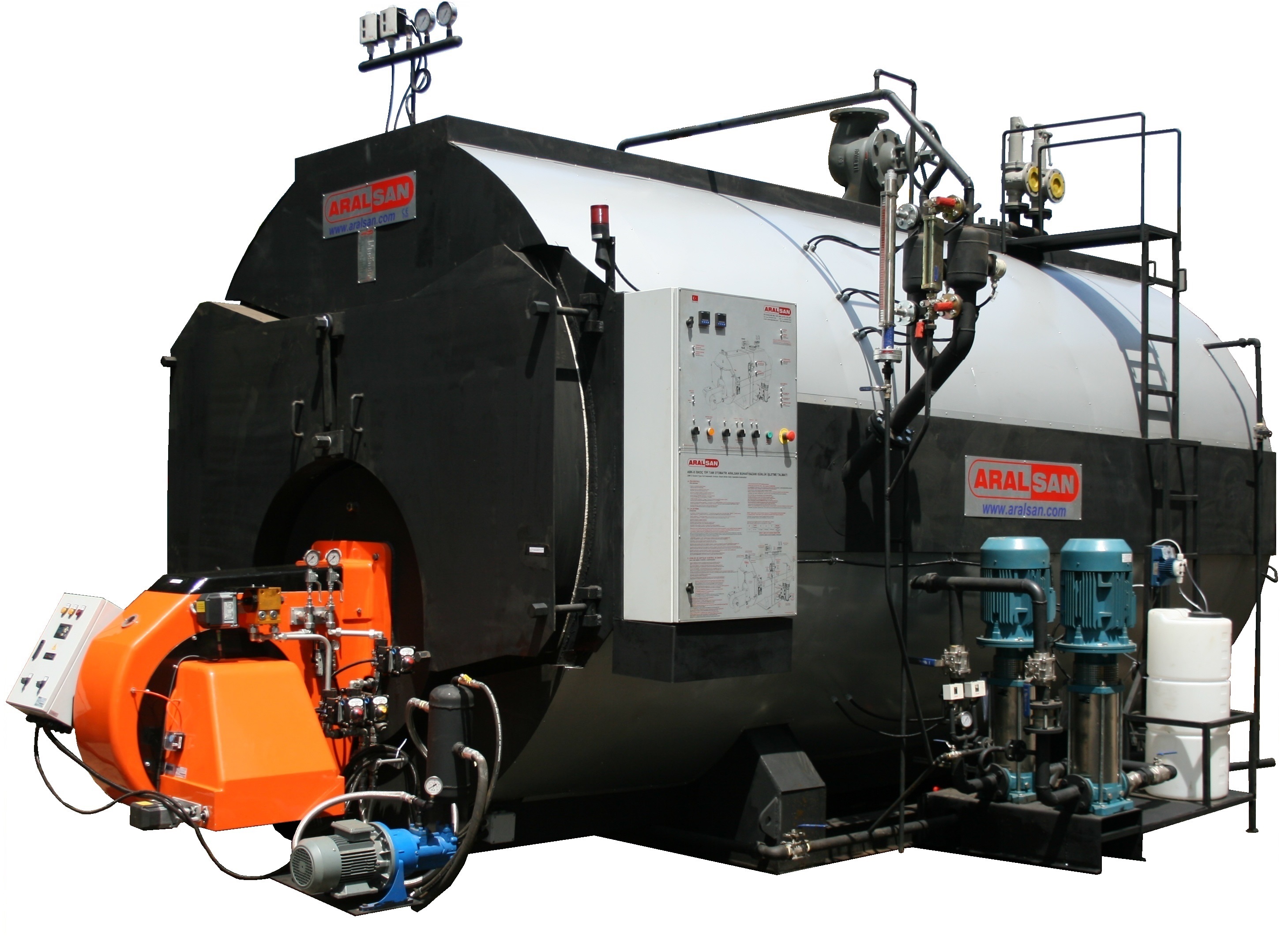

ABK-S / Skotch Type Steam Boiler

Language English

Vertical Tabs

General

ALL IN ONE type package steam boiler including its all necessary equipment
Ready to use after making of WSFEC^[*] connections
Certified according to 2014/68/EU PED directive and delivered with CE sign
Furnace is designed for gas and oil
User friendly control panel easy operation

[*] WSFEC - Five basic connections:

Water, Steam, Fuel, Electricity, Chimney

Capacity Range

Manufactured according to customer request at the capacity range from 200 kg steam to 15 000 kg steam and at the oprration pressure from 0.5 bar to 20 bar operation pressure.

Fuel Type

Natural Gas
Heavy Oil
Diesel Oil
LPG, LNG, CNG
Bio Diesel
Pyrolysis Gas

Standard Operation Accessories

Boiler body
Control panel
Nice operation instructiun on anodized aluminum
Burner
Boiler feed pump
Pump valves, check-valve, air-went valve, pressure gauge
Main steam valve
Air-went valve
Bottom blowdown valve
Surface blowdown valve
Water level controller
Water level gauge
Pressure controller
Pressure gauge
Condensate tank
Condensate tank valves and water level gauge
Condensate tank water level controller

Standard Safety Accessories

Safety valves
Safety pressure controller
Electrodes for low water level
Electrodes for high water level
Electrodes for low water level in condensate tank
Steam temperature controller
Flue gas temperature controller
Pump subpressure controller
Pump super pressure controller
Overload protection system for pump motor
Phase protection relay
Alarm light and buzzer

Optional Accessories

Modulating water feeding system
Automatic bottom blowdown
Automatic surface blowdown
Steam flowmeter
Steam flow rate adjusment system
Water softener
Feed water dosage pump
Integrated deaerator
Hot water exchanger
Steam head
Steam seperator
Flue gas duct and chimney

Operation features

Full automatic working
Automatic combustion control according to steam pressure
Safety operation
Automatic control of each boiler parameter seperatly
High efficiency
Environment friendly operation
Very very low flue gas emmission according to international regulations

Manufacturing features

Manufactured with high quality certified boiler sheet in accordance with EN 12953
High quality welded or seamless boiler tubes certified according to pressure group
Special turbulators placed in boiler tubes, made from AISI 316 stainless steel
All weldings are made by welders certified in accordance with EN 9606-1
All weldings are controlled by NDT technicians and UT test is applied to a certain percentage of them
Whole body is painted double coat with heat resistant paint
Insulated with rock wool and covered color galvanized sheet
Combustion chamber door covered with ceramic blanket and coated glass fluid, resisting up to 1250 °C
Ceramic gasket is used for door and covers sealings against gas leakage
Handhole and manhole (if the shell diameter more than 1400 mm) on it offers easy cleaning of water side
Mounted on power pedestal
ARALSAN's warranty extendable up to 5 years
