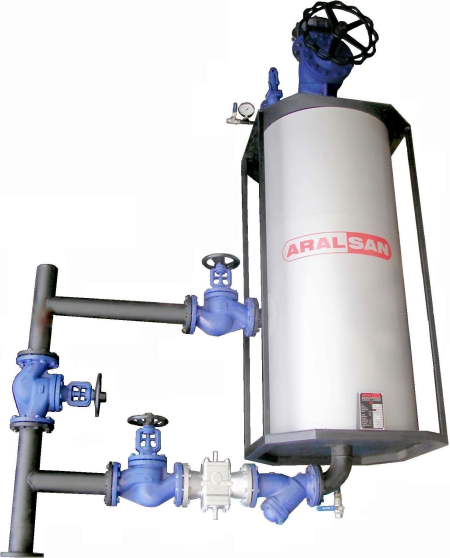

Language EnglishVertical Tabs General Aralsan Flash Steam Tank is designed to recover flash steam emerging in open condensate tank where pressurized condensate expands to atmospheric pressure Capacity Range Manufactured according to customer request at the capacity range from 50 kg/h steam to 5000 kg/h flash steam at the operation pressure from 0.2 bar to 6 bar Standard Operation Accessories Flash tank Condensate inlet, outlet and by-pass valves Steam trap and its stra,ner Flash steam outlet valve Flash steam check valve Safety valve Airwent valve Pressure gauge Drainage valve Manufacturing features Manufactured with high quality certified boiler sheet in accordance with EN 12953 All weldings are made by welders certified in accordance with EN 9606-1 All weldings are controlled by NDT technicians and UT test is applied to a certain percentage of them Whole body is painted double coat with heat resistant paint Insulated with rock wool and covered color galvanized sheet Handhole and manhole (if the shell diameter more than 1400 mm) on it offers easy cleaning of water side ARALSAN's warranty extendable up to 5 years
