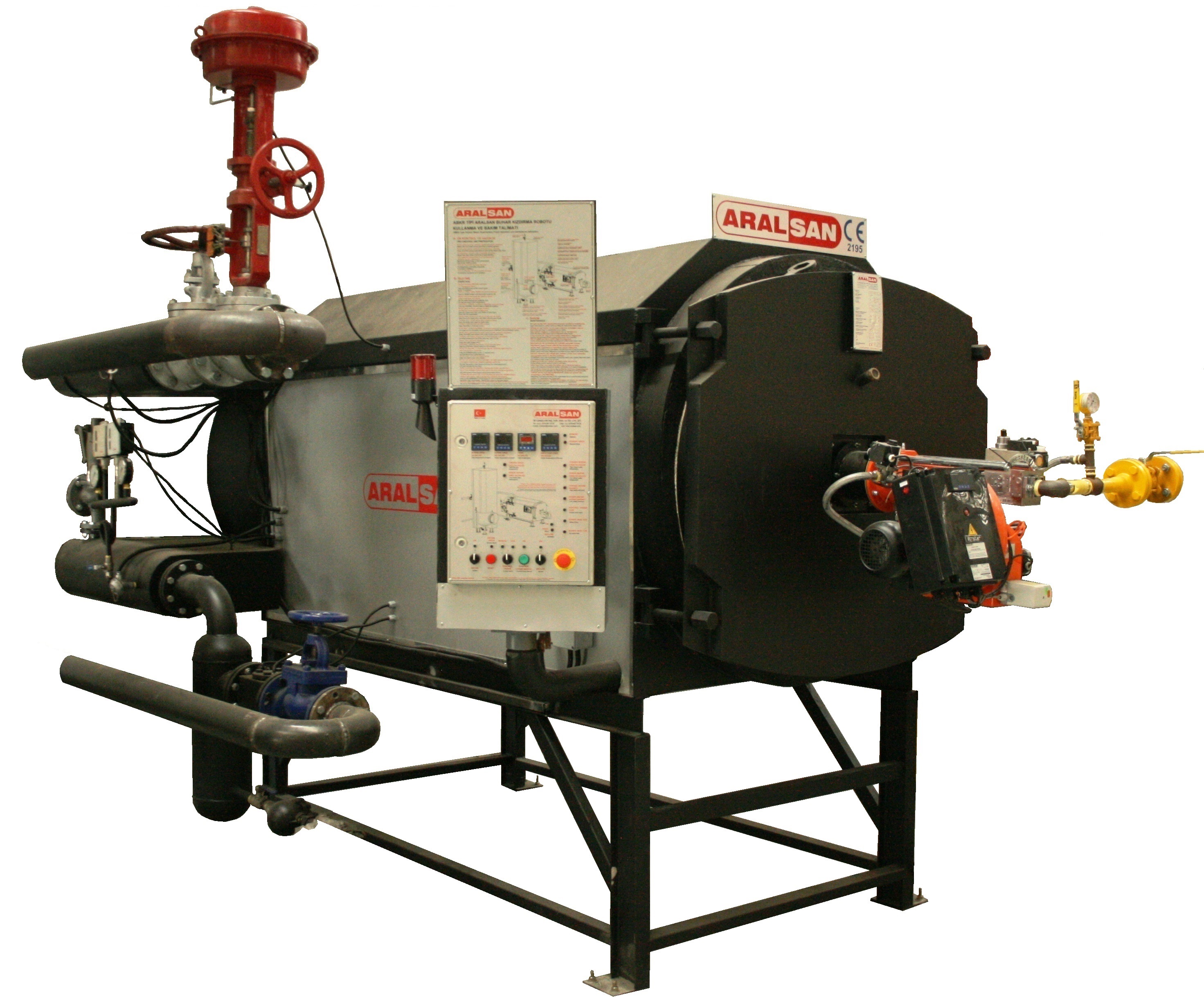

Language EnglishVertical Tabs General Designed for superheating of saturated steam produced by a separate existing steam boiler ALL IN ONE type package steam superheater including its all necessary equipment Ready to use after making of all connections (saturated steam, superheated steam, fuel, electricity, chimney) Certified according to 2014/68/EU PED directive and delivered with CE sign Furnace is designed for gas and oil User friendly control panel easy operation Capacity Range Manufactured to superheat saturated steam up to 450 °C according to customer request at the capacity range from 1000 kg/h steam to 50000 kg/h steam at the operation pressure from 4 bar to 20 bar. Fuel Type Natural Gas Heavy Oil Diesel Oil LPG, LNG, CNG Bio Diesel Pyrolysis Gas Standard Operation Accessories Superheater body made from seamless spiral tube Control panel Nice operation instructiun on anodized aluminum Modulating burner Saturated steam inlet valve Superheated steam outlet valve Airwent valve Pressure controller Pressure gauge Flow control device Steam separator Steam separator armatures (steam trap, strainer, stop valve, check valve) Standard Safety Accessories Safety valve Safety pressure controller Safet steam temperature controller Flue das temperature controller Flow control system Phase protection relay Alarm light and buzzer Operation features Full automatic working Automatic combustion control according to steam outlet temperature Safety operation Automatic control of each superheater parameter seperatly High efficiency Environment friendly operation Very very low flue gas emmission according to international regulations Manufacturing features Manufactured with high quality certified seamless boiler tubes in accordance with EN 12952 Special turbulators placed in boiler tubes, made from AISI 316 stainless steel All weldings are made by welders certified in accordance with EN 9606-1 All weldings are controlled by NDT technicians and UT test is applied to a certain percentage of them Whole body is painted double coat with heat resistant paint Insulated with rock wool and covered color galvanized sheet Furnace area is protected by envelope made from AISI 310 stainless steal Combustion chamber door covered with ceramic blanket and coated fluid glass, resisting up to 1250 °C Ceramic gasket is used for door and covers sealings against gas leakage Mounted on power pedestal ARALSAN's warranty extendable up to 5 years
